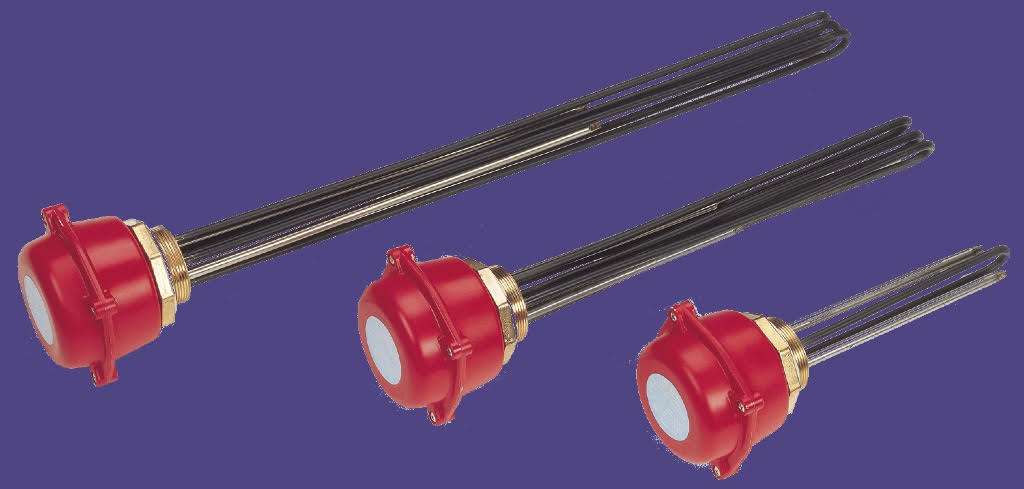

RX Screw In, Fixed, Rod Element Immersion Heater
Applications
+ –- A cost effective range of immersion heaters intended to heat water in commercial and building service applications.
- Equivalent to certain Santon, Heatrae and Redring* immersions heaters.
*Equivalent is defined as being of similar element watts densities and element sheath materials. Please note that Redring heaters incorporate Incoloy 825 elements. Please see the Howden WR range of Nicalloy 825 element heaters. Nicalloy 825 is equivalent to Incoloy 825.
Please download our product catalogue sheet for further information.
Standard Range
The Howden RX range provides models ranging from 1kW to 15kW in 2″ BSP and 2.25″BSP. Many models are kept in stock.
Typical applications for the standard range include:
- Domestic Hot Water (DHW) in cylinders and calorifiers
- Anti-frost applications
- OEM equipment
Custom Applications
The flexibility of our manufacturing process means that heaters can be custom manufactured to suit specific applications. These can be single units or batches, both at cost effective prices.
If you don’t know the full specification of the heater you need, we can often manufacture from samples. We also offer a breakdown service. Contact our sales department for more information.
Typical custom applications:
- Water heating
- Cleaning and rinse equipment
- Sterilising equipment
- Anti-frost applications
- OEM applications
Features
+ –- Range of loadings from 1kW to 12kW, single and three phase.
- 2”BSP and 2¼”BSP thread sizes.
- Nicalloy 800 elements offering improved resistance to hard or aggressive waters.
- Enclosure designed to IP55.
- Most models are fitted with a control thermostat and over-temperature, safety thermostat.
- 6kW models available that do not require to be wired through a contactor.
- Despatch – generally ex-stock.
Please download our product catalogue sheet for further information.
Features or our standard range:
- Range of loadings from 1 kW to 12 kW, single phase (up to 6kW) and three phase models.
- 2″ BSP to 2¼” BSP thread sizes.
- Nicalloy 800 elements .
- Plastic enclosure rated to IP55.
- Control thermostat with in-built over-temperature cut-out.
- 6 kW models available that do not require to be wired through a contactor.
- Maximum design temperature of 90ºC.
- Maximum design pressure of 6bar.
- Equivalent to certain Santon, Heatrae and Redring* immersion heaters.
- Despatch – generally ex-stock.
Options for custom made immersion heaters:
- Lower watts density elements.
- Nicalloy 825 corrosion resistant elements.
- Operating voltages up to 480V.
- Alternative thermostat ranges such as 0º-40ºC.
